Hi-Link - HLK-LD6004 - Pinout & Setup

For a recent project i wanted a MMWave 3.3v sensor that could detect multiple people, the LD6004 fit this use case. When my order arrived i struggled to find any documentation for the pinouts in English but i managed to find the below as part of the product launch blog (translated).


Most other Hi-Link products have a google drive link with the documentation, i cant find one for this yet. Those looking to integrate now, i suggest you refer to the documentation or the HLK-LD6002B. The communication protocol specification should help plus there are a number of existing libraries\tools on GitHub

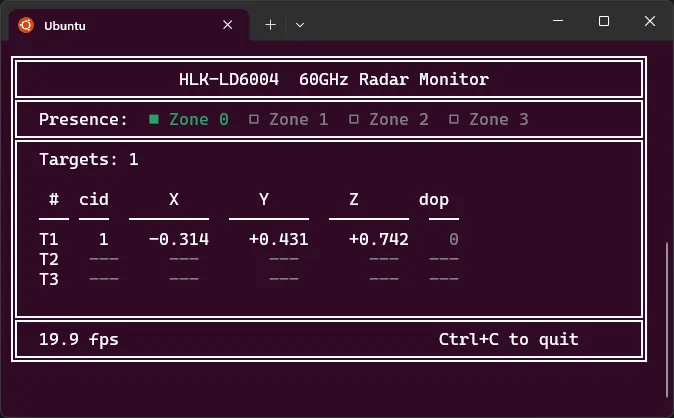

Test Script

Quick little script to get you going. Grab it from GitHub Here ld6004_monitor.py

Just pass the Serial Port

python3 ld6004_monitor.py /dev/ttyUSB01

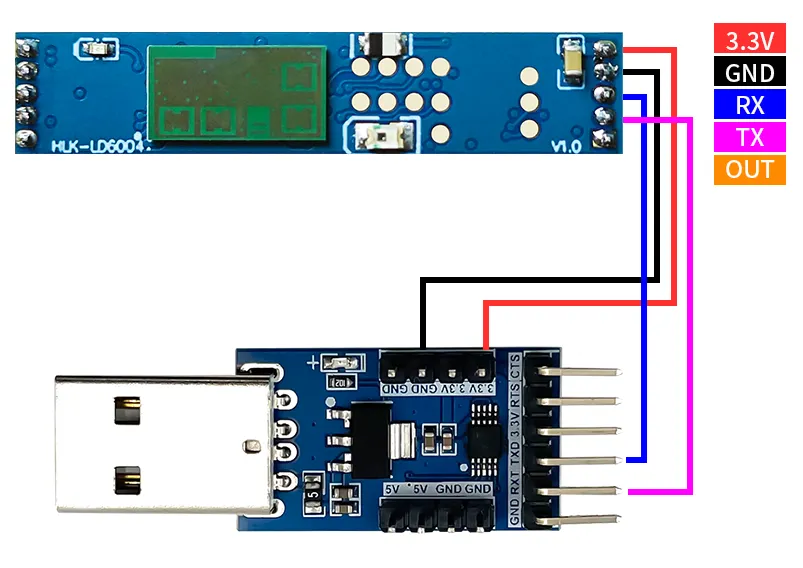

Wiring

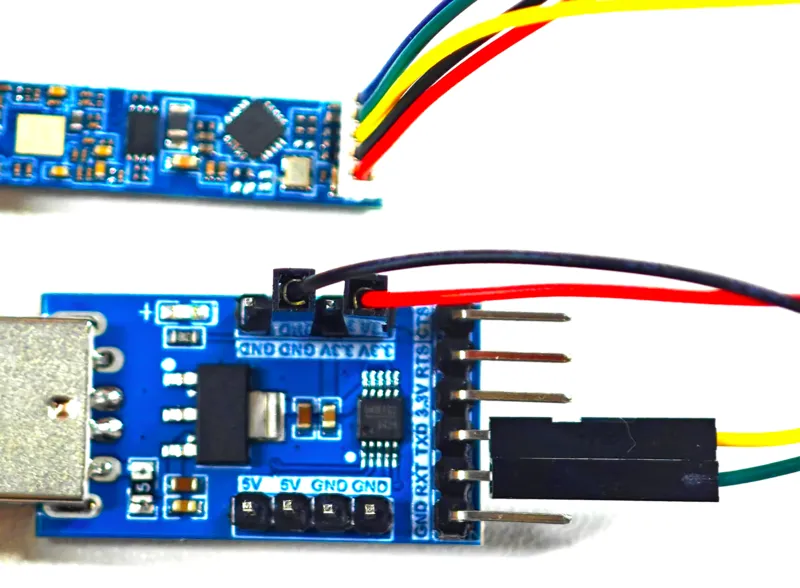

If you are using their kit and breakout cable the below. the USB to serial Adapter is a CH340



Specifications

  • Module: HLK-LD6004
  • Chip: ADT6101P (57-64 GHz FMCW, 2T2R AIP antenna, ARM Cortex-M3, 1MB flash)
  • Frequency: 60GHz mmWave FMCW
  • Detection range: 0-6m (wall-mounted)
  • Beam: horizontal/vertical +/-60 degrees
  • Multi-target: Up to 3 persons, real-time x, y, z coordinates
  • Auxiliary data: Distance and speed (Doppler index)
  • Module size: 25 x 31.5 mm
  • Power Supply: 3.1-3.5V, 135-600mA
  • Interface: UART + GPIO
  • Closest sibling: HLK-LD6002B (identical protocol, same chip family)
